High Precision Shear Beam Load Cell , Stainless Steel Load Cell

Name: High Precision Shear Beam Load Cell Stainless Steel Load Cell
Brand: TOP SENSOR
Price: 1 USD

Brand Name : TOP SENSOR

Model Number : SD-06

Certification : CE

Place of Origin : China

MOQ : 4 pcs

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 20-25 days

Packaging Details : 20 pcs per carton

Price : Negotiable

Product Name : Single Shear Beam Load Cell

Capacity : 500kg-2000kg

Application : Floor scales, Platform scales

Feature : Glue sealed, oil-proof, waterproof and anti-corrosion

Signal : 2mv/v

Input /output resistance : 350 Ohm

Contact Now

High Precision Shear Beam Load Cell , Stainless Steel Load Cell

Single Shear Beam Load Cells
Model: SD-06
CAPACITY: 500kg-2000kg
Features:
Single Shear Beam Load Cell, Capacity range from 500kg to 2000kg
Material: Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
hermetically welded, oil-proof, waterproof and anti-corrosion
APPLICATIONS: Floor scales, Platform scales, or other weighing machine

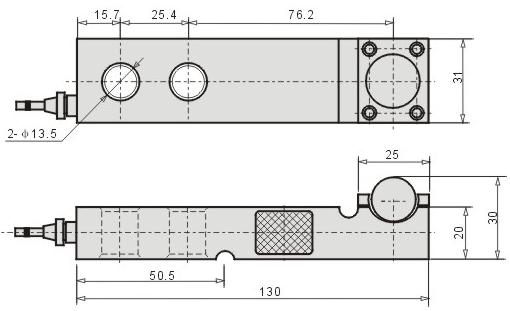

Dimensions: (mm)

Parameters:

Precision:		C3
Rated Output:		2mv/v±0.003
Creep(%F.S/30min):		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP67
Cable Length:		3 meters -10 meters
Wire Connection Method
RED=Input+	BLACK=Input-	GREEN=Output+	WHITE=Output-
